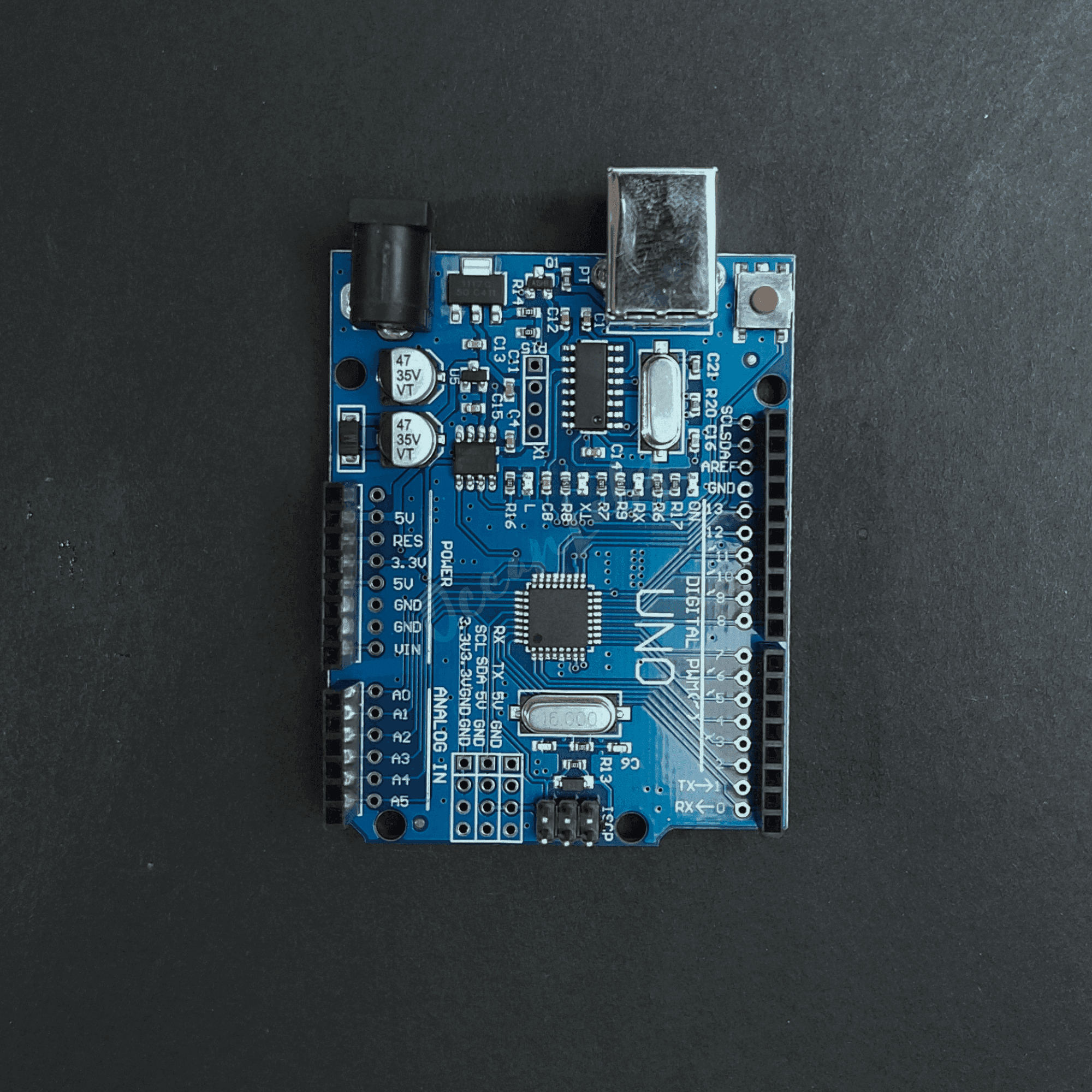

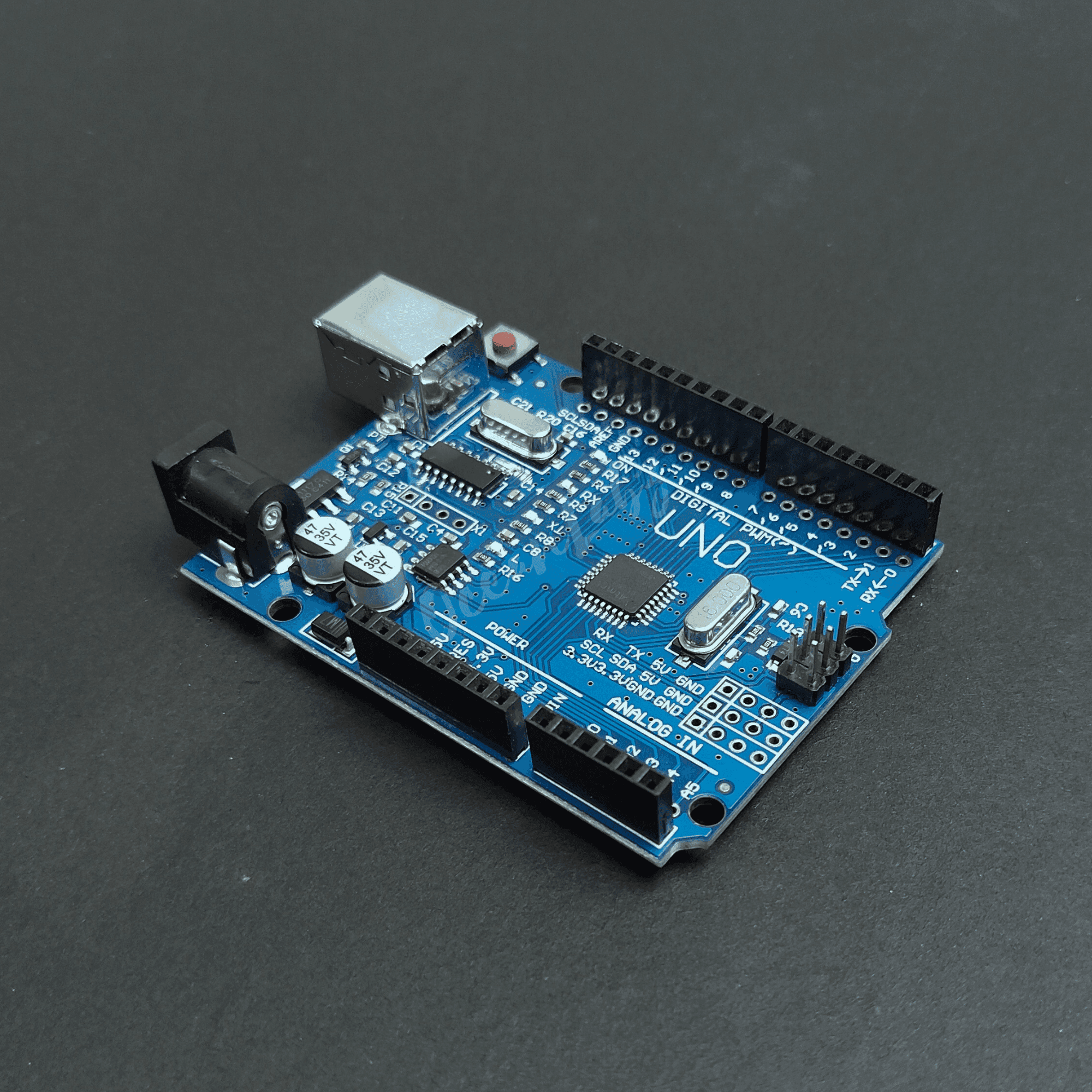

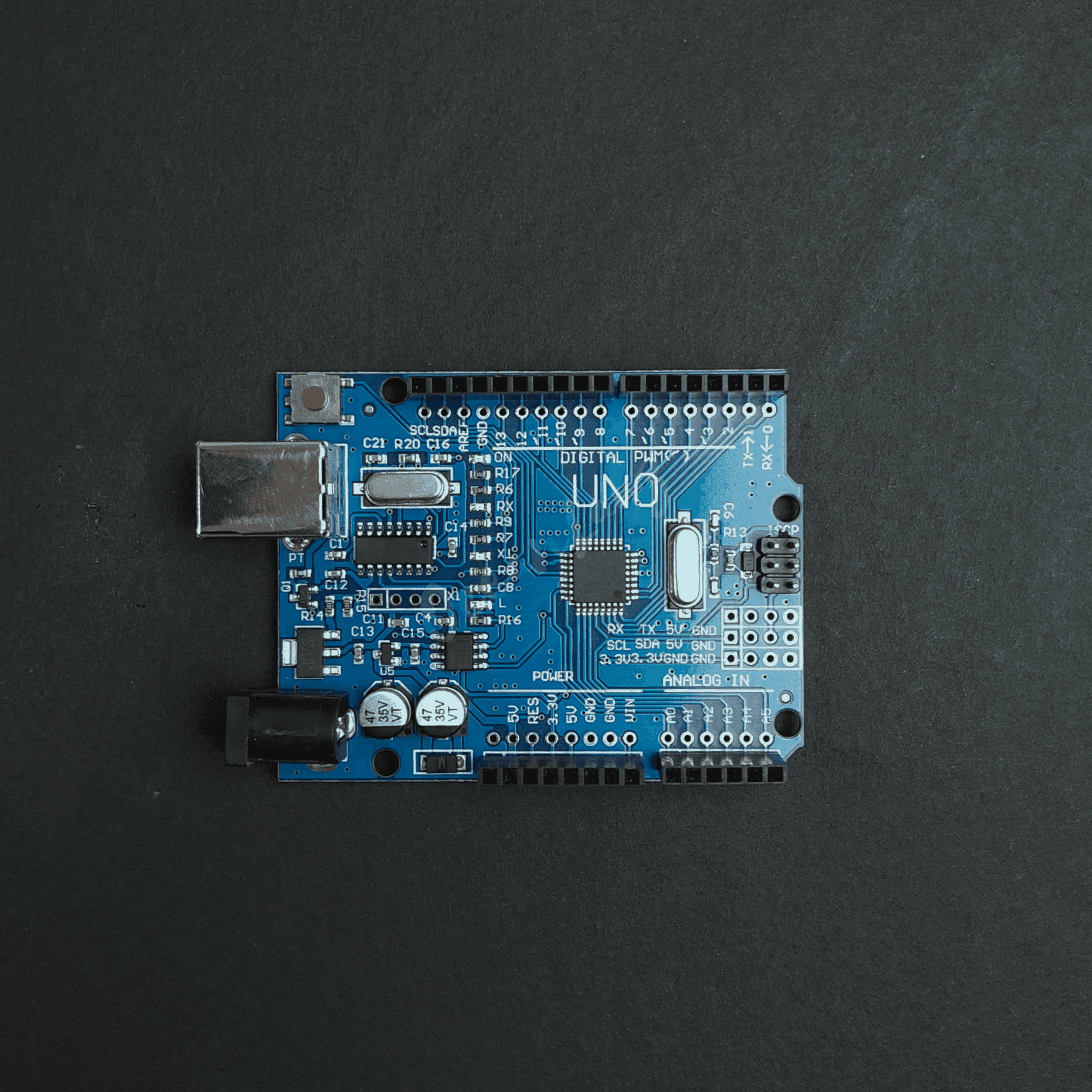

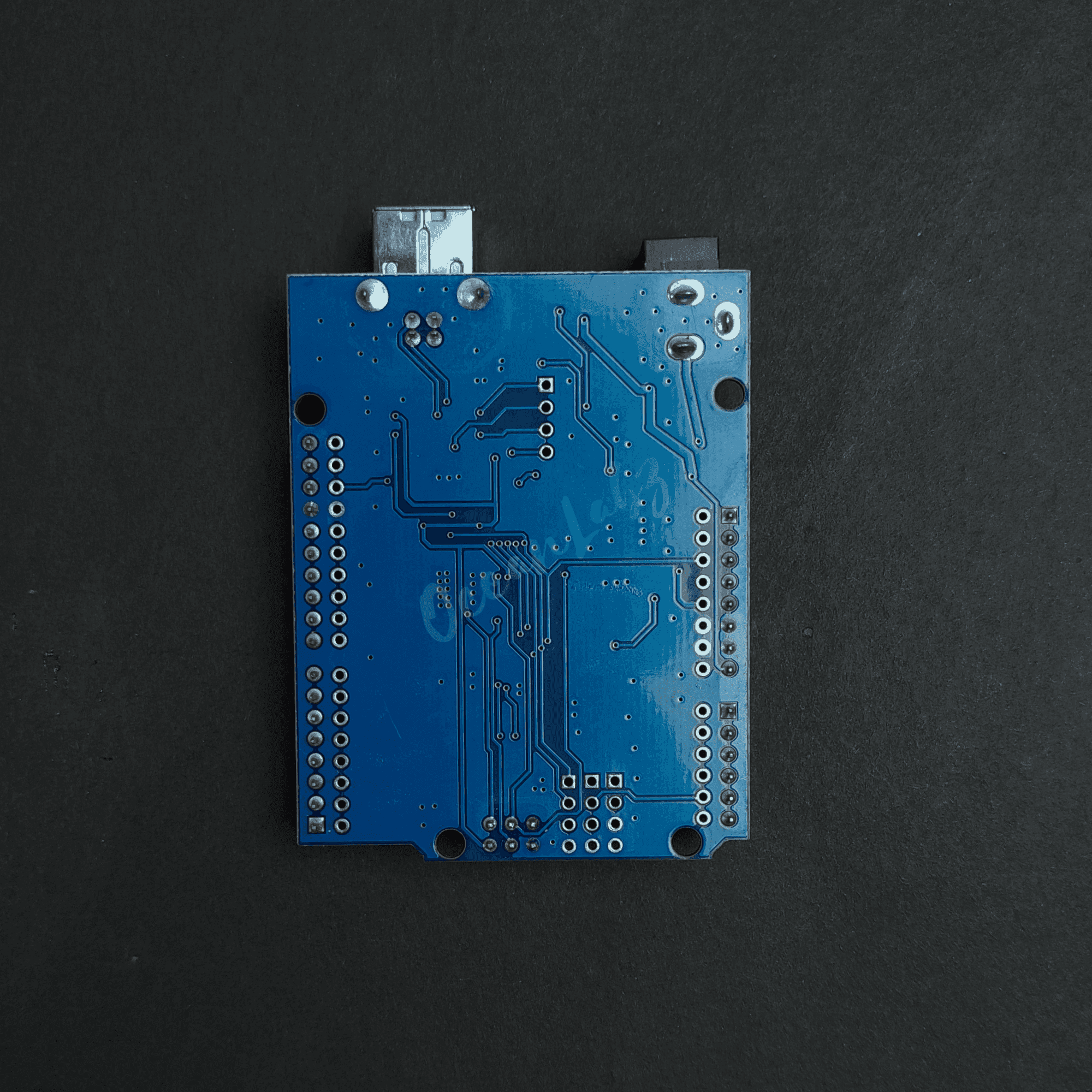

Arduino UNO R3 SMD Development Board With USB A to B Cable
\n - Microcontroller ATmega328 SMD \n - USB Interface CH340G \n - I/O Pins 14 digital (6 PWM) and 6 analog inputs \n - Memory 32 KB Flash, 2 KB SRAM, 1 KB EEPROM \n - Clock Speed 16 MHz \n - Power 5V operating, 7-15V input, 7-12V recommended \n - Current 40 mA per I/O pin, 50 mA for 3.3V pin \n
SKU: WOO-20832 · GST inclusive · Free shipping over ₹1500
✓ Lab-tested before dispatch
✓ Free code, tutorials & documentation
✓ Support from real makers
Description
\n The UNO R3 SMD band is based on Atmega328 SMD Package Microcontroller. It has 14 digital input/output pins (out of which 6 can be used as PWM output), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It is assembled with the CH340 USB to Serial converter chip. The UNO R3 SMD band consists of 2 rows of holes for the pins (Male and Female), so it can be connected with normal female jumper wires. It also has 3 additional rows of holes for wiring. The board has onboard LEDs to indicate power. Also, the IC Atmega328P is removable. This means that if the Atmega328P IC is not working then it can be replaced with another one.
\n
\n Specifications
\n \n - Microcontroller: ATmega328P
\n - Operating Voltage: 5V
\n - Input Voltage (Recommended): 7-12V
\n - Digital I/O Pins: 14 (6 can be used as PWM outputs)
\n - Analog Input Pins: 6
\n - PWM Output Pins: 6
\n - Flash Memory: 32 KB (0.5 KB used by bootloader)
\n - SRAM: 2 KB
\n - EEPROM: 1 KB
\n - Clock Speed: 16 MHz
\n - USB Interface: USB Type-A to B
\n - Dimensions (LxWxH): 10x5x1 cm
\n \n Helpful Link
\n 👉Getting Started with Arduino
