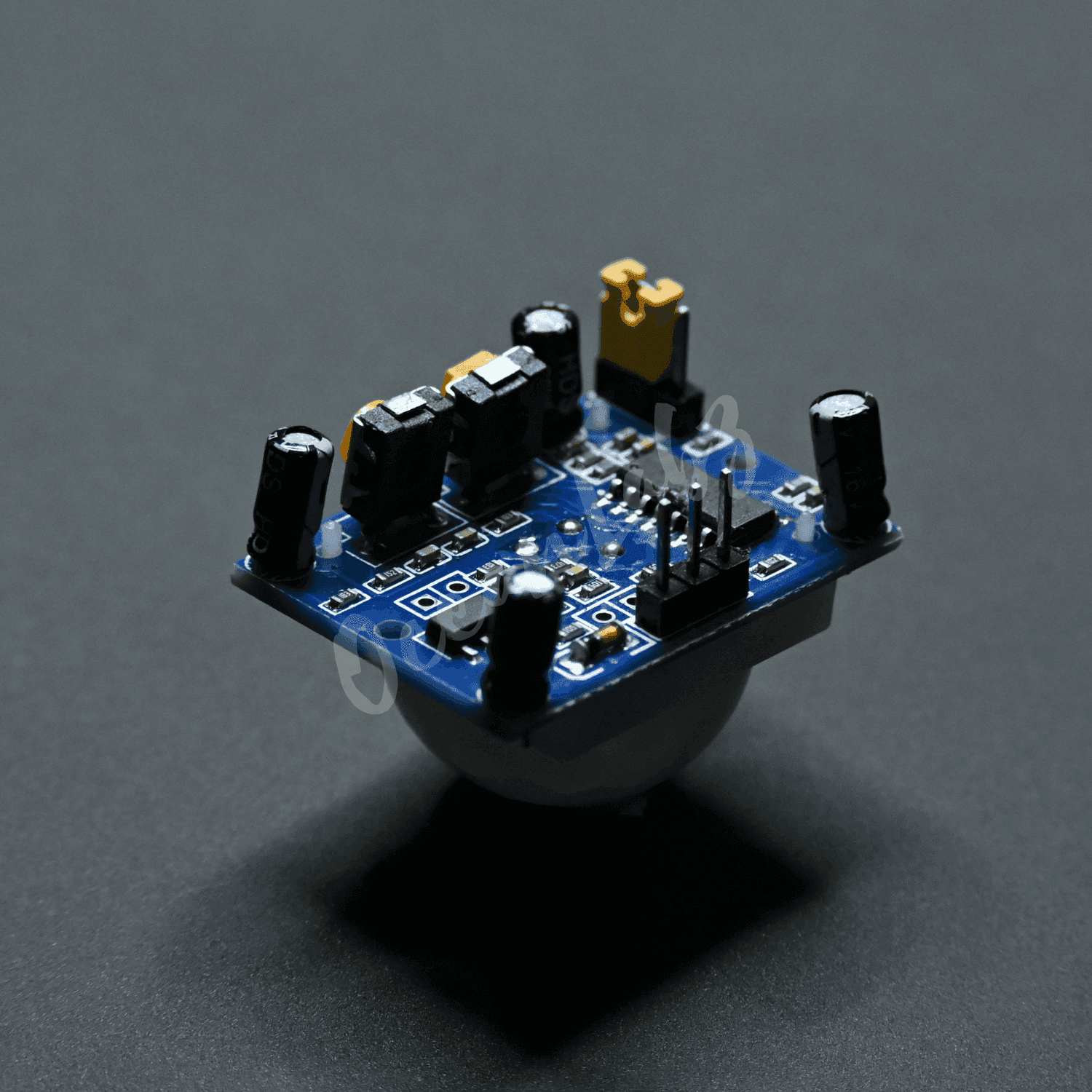

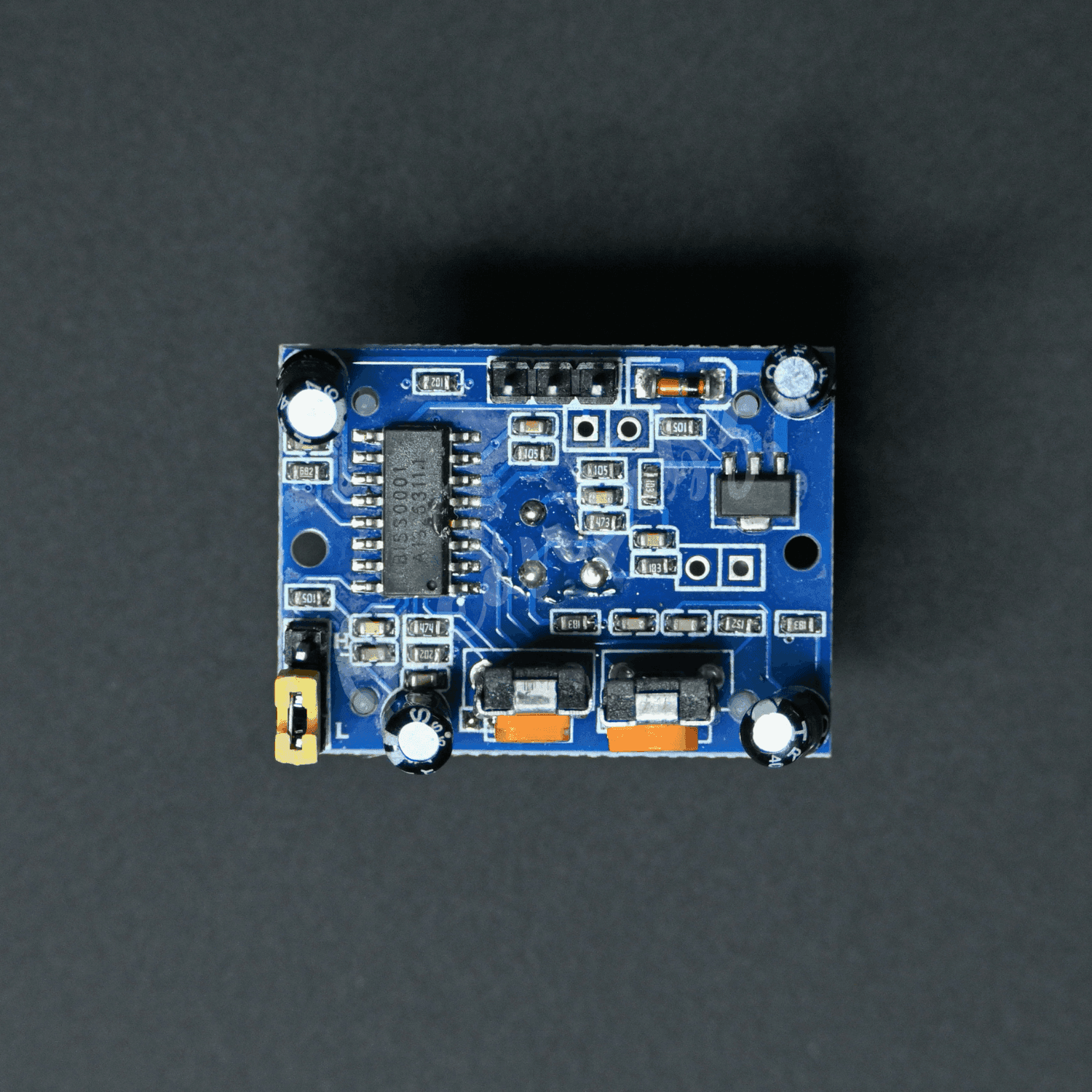

HC-SR501 Pyroelectric Infrared Pir Motion Sensor Detector Module (Fully Tested)
\n - Wide Working Voltage Range: DC 4.5V- 20V \n - Current Drain: <60uA \n - Detection Angle <140° \n - Detection Distance 3 to 7m (can be adjusted) \n - Blockade time: 2.5s (Default) \n - Work temperature: -20 - +80°C \n
SKU: OLM1092 · GST inclusive · Free shipping over ₹1500
✓ Lab-tested before dispatch
✓ Free code, tutorials & documentation
✓ Support from real makers
Description
The Passive Infrared Sensor (PIR) sensor module is used for motion detection. It is often referred to used "PIR", "Pyroelectric", "Passive Infrared" and "IR Motion" sensor. The module has an on-board pyroelectric sensor, conditioning circuitry and a dome shaped Fresnel lens. It is used to sense movement of people, animals, or other objects. They are commonly used in burglar alarms and automatically-activated lighting systems. \n FEATURES & SPECIFICATIONS :
\n \n - Wide Working Voltage Range: DC 4.5V- 20V
\n - Current Drain: <60uA
\n - Detection Angle: <140°
\n - Detection Distance: 3 to 7m (can be adjusted)
\n - Blockade time: 2.5s (Default)
\n - Work temperature: -20 - +80°C
\n
